ASA 24V Solar - 1/2hp Kit - 2 Diffusers

ASA 24V Solar - 1/2hp Kit - 2 Diffusers

SKU HC280D-CAB-1Set
$4,801.00 - $5,281.00
$4,801.00
$4,801.00 - $5,281.00
$4,801.00
Availability:
Low stock
Availability:
Low stock
Options: 1 Diffuser

Available in 1 Diffuser or 2 Diffuser options, the ASA 24V Solar – 1/2hp Kit is designed to suit a variety of pond sizes and aeration requirements.

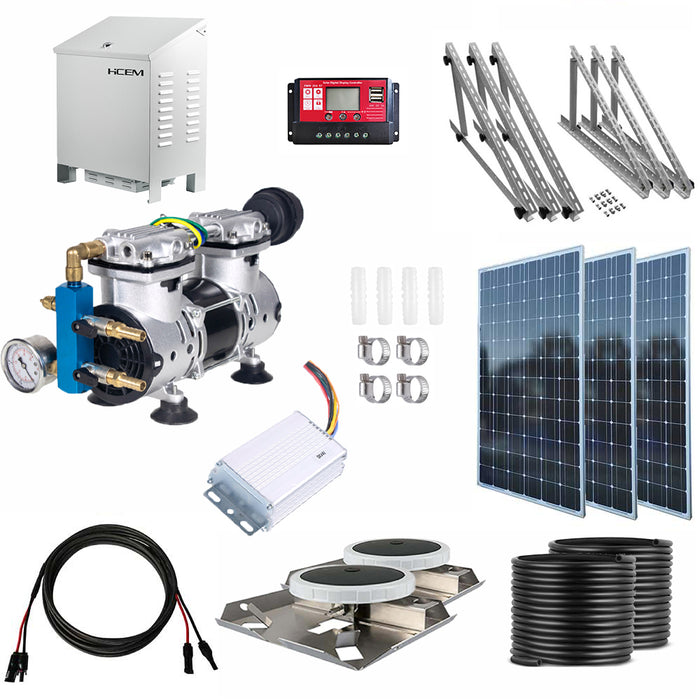

Each kit includes:

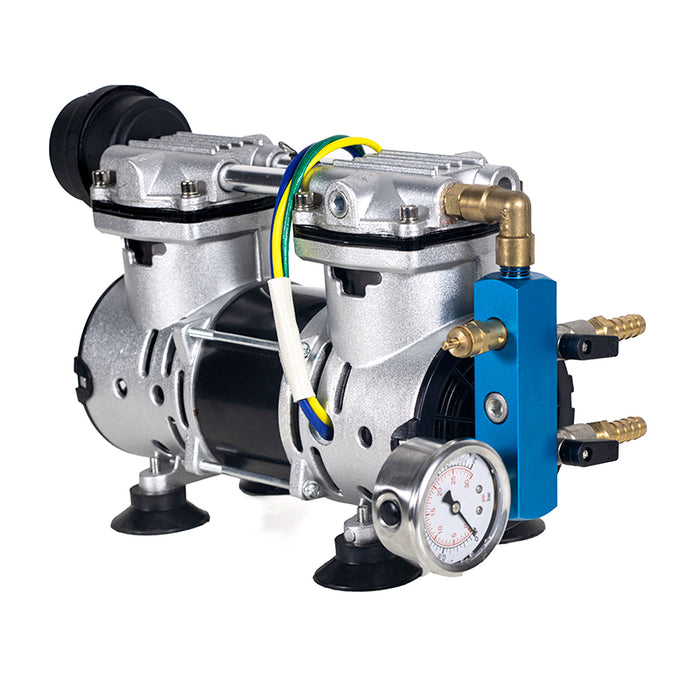

  • 1 x HC280D Compressor in Lockable Cabinet
  • 2-way Manifold with individual flow control
  • 1 or 2 x Diffusers (depending on selected variant)
  • 1 x 30m Weighted Hose per Diffuser
  • 2 x Hose Clamps per Diffuser
  • 6 x 100W Solar Panels + 6 x Mounting Brackets
  • Digital Controller with day/night programming
  • all cables and connectors

    Power Note: This system operates on a dedicated 24V battery setup (battery not included).  We recommend 2 x 12v 100ah batteries for this system.

    Solar Bracket Installation

    Owner's Manual and Instructions

    ASA Aeration Compressors & Kits

    Model HC280D-CAB
    Voltage DC12V /24V /48V
    Power (0-2 Bar) 150 - 320W
    Max CFM 3.1
    Max Flow L/min 90L/min@0Bar
    75L/min@2Bar
    Dimension 550*450*690mm
    Net Weight 28.5kg
    Use Environment -5°C - 40°C
    Diffusers 1-2 Single diffusers
    Noise ≤55dB(A)
    Max Pond Size 2 acres
    Max Diffuser Depth 15m

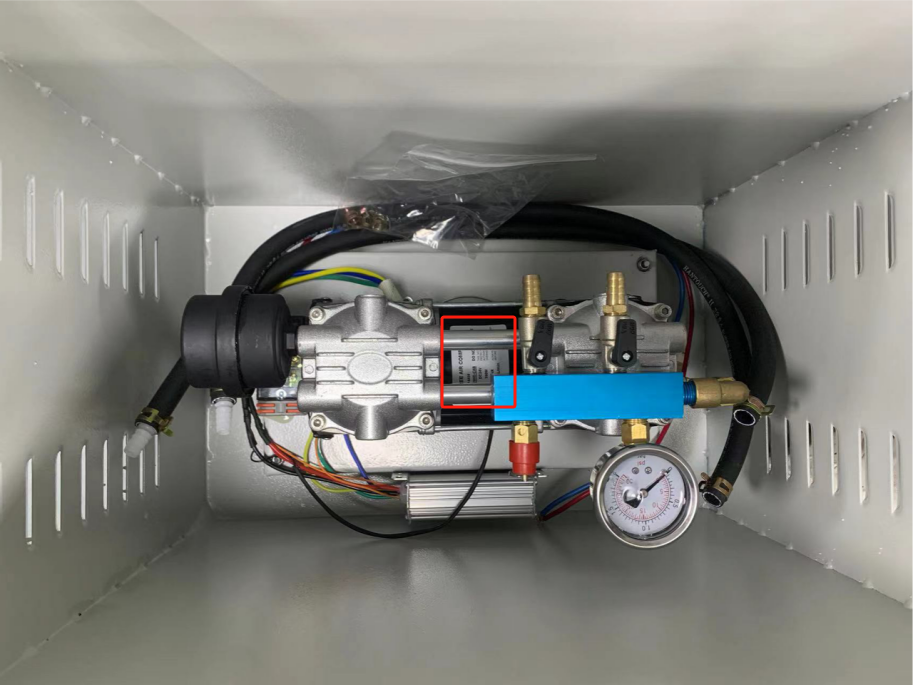

    Cabinet with Cooling Fan Included
