FilterBlox Module

FilterBlox Module

SKU 56016
NEW
$218.00 - $218.00
$218.00
$218.00 - $218.00
$218.00
Availability:
in stock, ready to be shipped

PRICE EXCLUDES FREIGHT*

Please contact us via the form below for a freight quote, availability and ordering.

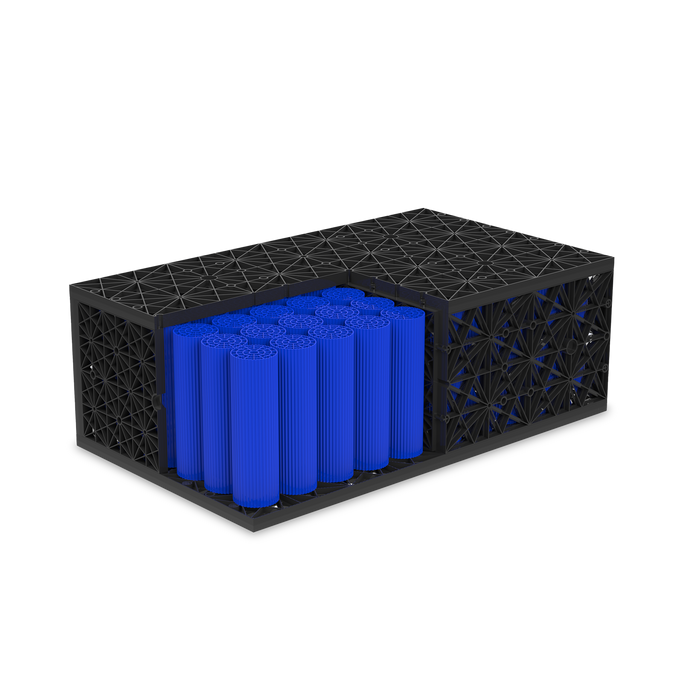

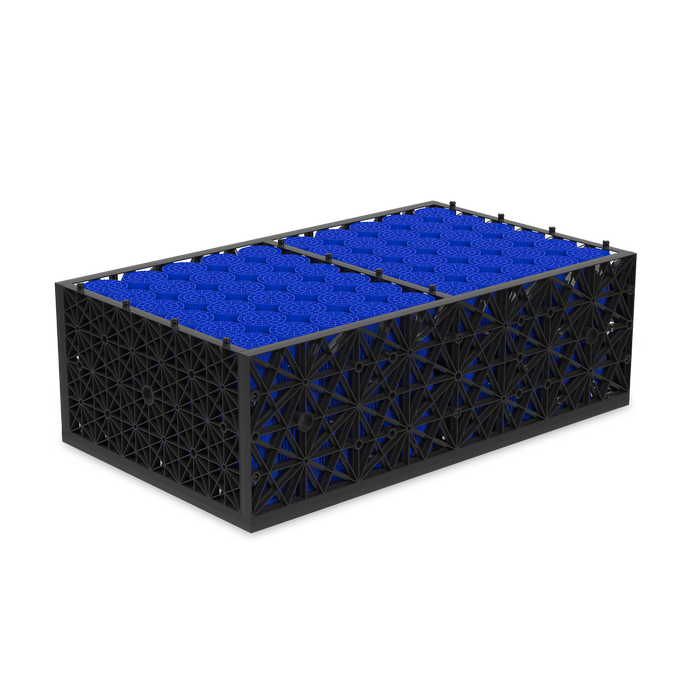

The FilterBlox™ Module is the biological heart of the wetland filter, providing 441% more surface area than traditional gravel beds for beneficial bacteria to colonise. Its internal HDPE Biological Filter Tubes create an ideal environment for breaking down excess nutrients such as nitrogen, phosphorus, and excess organic waste. This innovative component is designed to integrate seamlessly with Centipede® Modules, Snorkel® Vaults, and other Aquascape wetland filter components The open, structured media promotes even water movement through the module, ensuring consistent filtration across the wetland. This design also optimises cleaning during maintenance pump-outs, making service faster and more effective.

Each module comes with 60 Biological Filter Tubes pre-installed for fast, efficient installation in the field. Stackable and modular, FilterBlox Modules can be configured to fit virtually any wetland layout, are the same size as AquaBlox® Water Storage Modules – Small, and work seamlessly with all Aquascape wetland components.

Dimensions: Size - 685mm L x 408mm W x 240mm H

Key features:

  • Provides 441% more surface area than gravel for superior biological filtration
  • Internal HDPE Biological Filter Tubes break down nitrogen, phosphorus, and organic waste
  • Open, structured media ensures even water flow during filtration and optimizes cleaning during maintenance pump-outs
  • Includes pre-installed Biological Filter Tubes for fast, efficient field installation
  • Modular and stackable with Snorkel® Vault Extension V2, designed to integrate perfectly with all Aquascape wetland components

Helpful Links

Wetland System Installation Instructions

Videos

FilterBlox Components

12345
1

Internal Biological Filter Tubes

Maximize surface area for unmatched biological filtration

2

Integrated Media

Inside small AquaBlox® Water Storage Modules for optimized structure and modular interaction with other components

3

Stackable, Modular Units

For custom filter capacity

4

Water Flow Channel

Optimizes cleaning and flow during filtration

5

Expanded Surface Area

Over 5x more surface area than gravel and 2x more than BioBalls Biological Filter Media

Wetland Filtration Components

123456
1

Snorkel® Vault*

Provides a central access point for cleaning and maintaining the wetland filter.*Snorkel® Vault and Lid V2 & End Cap for Centipede®

2

Snorkel® Vault Lid V2

Protects the Snorkel Vault from debris entry, withstanding foot traffic for safe use

3

Centipede® Module V2

Distributes water evenly throughout the wetland filter bed for maximum contact with filter media

4

AquaBlox® Water Storage Modules

Act as a settlement chamber, allowing solids to drop out of suspension before the water rises through the filter media

5

FilterBlox™ Module

Use internal Biological Filter Tubes to maximize surface area, greatly increasing capacity for filtration

6

Centipede® Module End Cap V2

Convenient connection point for incoming plumbing
